Extrusion Cutting Equipment (90% of the industry chooses OSIKE products)
欧西克挤出下料机，机身采用矩形管焊接，结构坚固稳定。

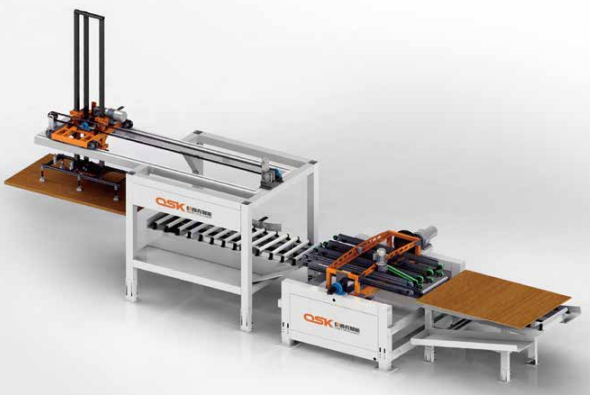

The OSIKE extrusion cutting machine features a welded rectangular tube body, ensuring robust and stable structure.
小车水平行走采用伺服电机配合同步带的方式，定位精准快速。
The horizontal movement of the carriage is driven by servo motors coupled with synchronous belts, providing precise and rapid positioning.
上下提升机构采用提升带提升设计，整机采用机械和电气双重安全系统来保证设备使用安全，
The lifting mechanism employs a belt-driven design for vertical movement, with both mechanical and electrical safety systems ensuring equipment safety.
并采用PLC智能控制系统，触摸屏友好人机界面。
Additionally, it is equipped with a PLC intelligent control system and a user-friendly touchscreen interface.
经过拨叉型间隔翻板机或者360度循环翻板机可以实现板材正反堆叠。
The stacking of sheets in both orientations, facilitated by a fork-type interval flipper or a 360-degree rotating flipper, can be achieved seamlessly.
下料机主要通过真空吸盘吸附工件的表面进行抓取移动作业，是地板、板式家具生产家挤出机必不可少的下料配套设备。
The unloading machine primarily operates by vacuum suction to grip and move workpieces, making it an indispensable accessory for extruders in the flooring and panel furniture production industry.
| 按制品长度： Product Length: | 600-3600mm，超长：3600-9000mm 600-3600mm, Extended Length:3600-9000mm |
| 按制品宽度 Product Width: | 600-2200mm |
| 按制品厚度 Product Thickness: | 1.5-500mm |
| 按制品重量 Product Weight: | 1-1000KG |
| 按速度： Speed: | 1-9PCS/分钟（Minute） |
客户现场案例
Customer Site Case
长Length：600~2440mm×宽Width：600~1220mm
长Length：600~2440mm×宽Width：600~1220mm
